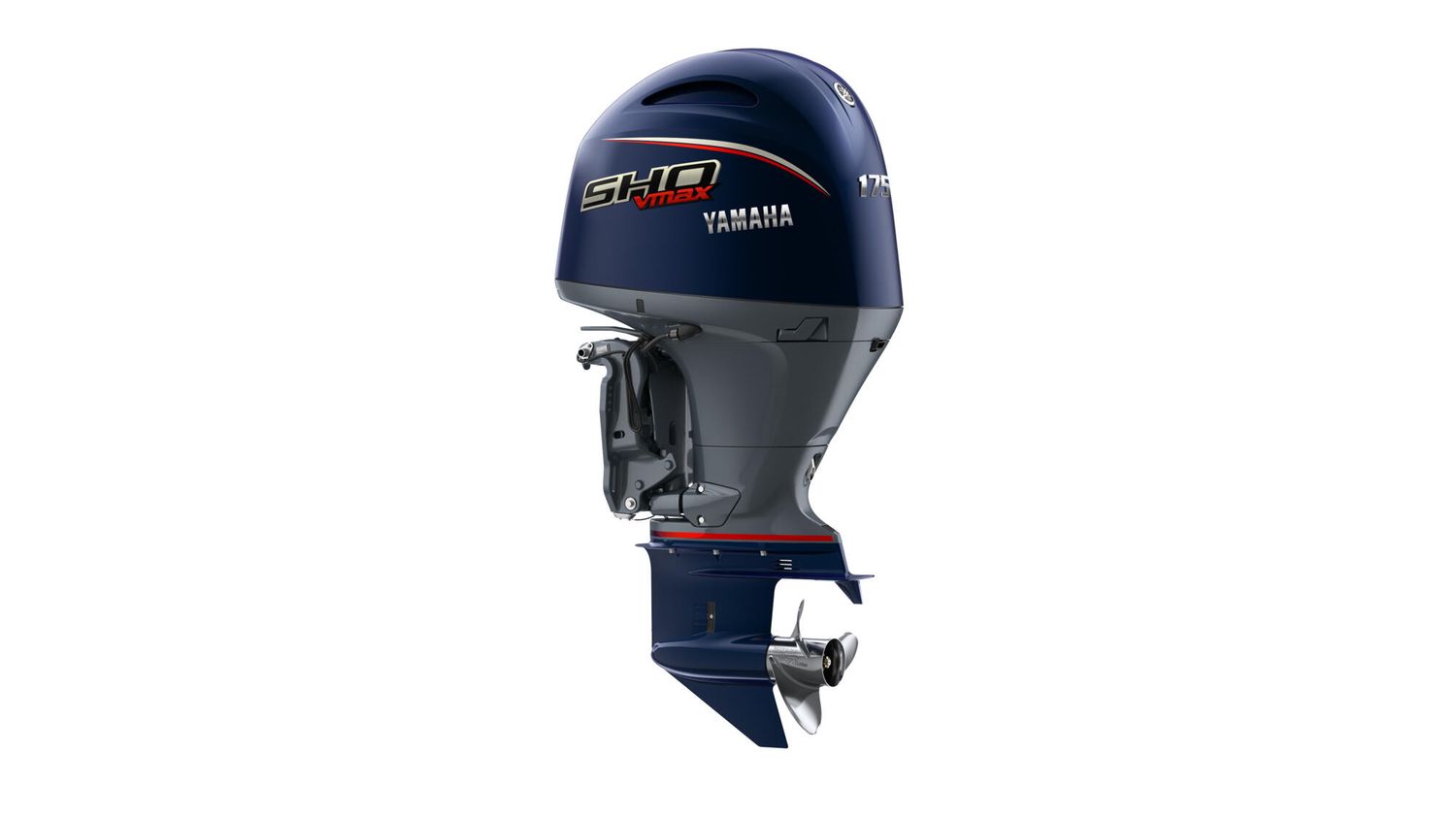

2.8 litres, 175hp, compact body, and enhanced signature Yamaha cowling design – the V MAX SHO 175hp is a zero compromise powerhouse. It has an amazing power-to-weight ratio and is expertly designed to deliver its unique acceleration in a clean, efficient and quiet way

The streamlined, sophisticated cowling design, with stylish 3D graphics and pared back decals, conceals advanced technology features like a 16-valve, double-overhead cam engine layout with variable camshaft timing and electronic fuel injection – but there’s no hiding the blistering acceleration and heart-pumping top speed.

This is no ordinary outboard. The 3-phase, high-power (50A) alternator provides plenty of power to all of the on-board electronics. What’s more, it delivers enough power to charge your batteries even at trolling speed, so you will never run out of power.

The 175 is the most powerful V MAX SHO and features our advanced 2.8-litre, four-cylinder, four-stroke engine, with 16-valves, double-overhead cam (DOHC) layout and counter-balance shafts. The result is ultra-smooth performance across the power spectrum. The powerhead design is based on Yamaha’s well proven four-stroke technology, so quiet reliability is also assured.

VCT (Variable Camshaft Timing) allows for perfect adjustment of air intake and exhaust timing to deliver optimum performance across the whole RPM range. The EFI (Electronic Fuel Injection) system ensures quick starts and consistent power, with optimum fuel efficiency and ultra-low emissions.

Engine type	4-stroke
Displacement	2.785cc
No. of cylinders/configuration	4/in-line, 16-valve, DOHC with VCT
Bore x stroke	96.0 x 96.2 mm
Prop shaft output at mid range	128.7 kW / 175 HP
Full throttle operating range	5,000-6,000 r/min
Lubrication system	Wet sump
Fuel Induction System	EFI
Ignition / advance system	TCI
Starter system	Electric with Prime Start™
Gear ratio	1.86 (26/14)

MODELS AVAILABLE

F 175 LB / XB : Long & Extra Long Shaft, Electric Start, Remote Control Box Supplied, Power Trim, Mechanical GEAR SHIFT & THROTTLE

Rig Kit C = Side Mount 703 Control + 5 inch LCD Touch Screen Display

------------------------------------------------------------------

Weight: From 227 Kgs

Gear Shift: F - N - R

Fuel Tank: NO TANK

Cylinders: 4

Capacity: 2785 cc

------------------------------------------------------------------
